Patio Door Sliding Collection

The Patio Door Sliding Collection from Bella Vista allows you to invite the outdoors into your home without sacrificing comfort or security. Sliding doors aren’t just for patios these days; they are at home in any room. Brighten your home with endless natural light and the beauty of the outdoors, without going outside.

The classic sight lines and ease of operation combined with several color options allows this door to fit anywhere in your home.

The Patio Door Sliding Collection is available in several standard sizes in two and four panel configurations and is fully customizable to your specifications.

The precision engineering behind these products results in smooth, easy operation and tight, secure closure. If you desire to add a patio door to your home Bella Vista's Patio Door is available with all the necessary interior and exterior trim options to finish the job.

Fashion and function meet with the insulated kick plate optior adding a distinct architectural flavor to your home.

The Patio Door Sliding Collection can be combined with several custom sidelights, transoms, grille & glass options along with several hardware functions and finish choices.


Standard sizing is available including 8' high doors but your choices are endless with our custom manufacturing capabilities that will create the door of your dreams.

The Bella Vista sliding patio door delivers value, beauf and of course, the exceptional quality we pride ourselves on.

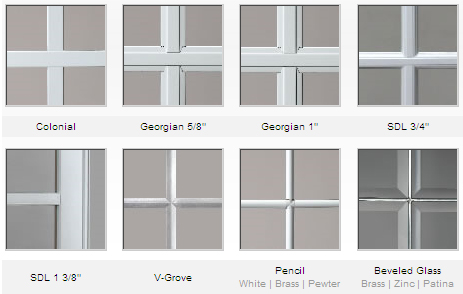

Patio Door Colour & Grille Options


Patio Doors

The Patio Door Sliding Collection from Bella Vista allows you to invite the outdoors into your home without sacrificing comfort or security. Sliding doors aren’t just for patios these days; they are at home in any room. Brighten your home with endless natural light and the beauty of the outdoors, without going outside.

The classic sight lines and ease of operation combined with several color options allows this door to fit anywhere in your home.

The Patio Door Sliding Collection is available in several standard sizes in two and four panel configurations and is fully customizable to your specifications.

The precision engineering behind these products results in smooth, easy operation and tight, secure closure. If you desire to add a patio door to your home Bella Vista's Patio Door is available with all the necessary interior and exterior trim options to finish the job.

Features & Benefits

  • The Patio Door all uPVC 5 3/4'”   frame is multi-chambered to provide maximum strength and thermal efficiency
  • Operating sashes are fusion welded and include steel reinforcement for added security and long lasting performance.
  • A sloped sill and internal weeps ensure optimal water drainage.
  • Triple weather-stripping at side jambs and a full interlock on sashes provide the best possible protection from air and water penetration.
  • Self-lubricated double tandem adjustable rollers provide smooth operation and durability on an anodized aluminum tract.
  • Heavy duty extruded aluminum screen frame with fiberglass mesh and 4 adjustable rollers contribute to effortless operation for years to come.
  • Reversible panels for left or right operation

Internal Mini- Blinds
Maintenance free internal mini-blinds. Raise, lower and tilt for maximum privacy or unobstructed view. Eliminate the need for more costly and awkward window coverings.



Patio Door Hardware Options

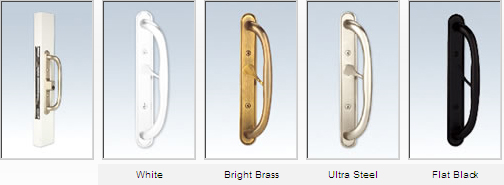

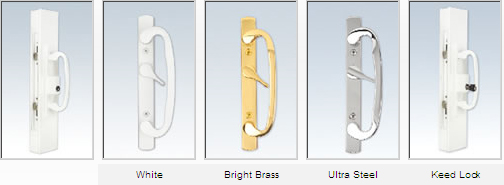

Classic Twin Point

The Classic Twin-Point hardware option will increase your appearance and add to your security with the twin lock system. There is an exterior keyed lock option available in all 3 finishes.

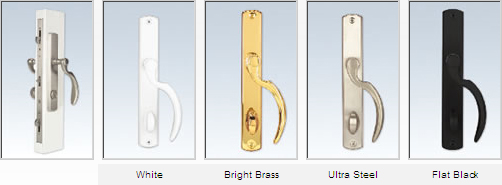

Olympus Twin Point

The Olympus Twin-Point hardware option will add another element of beauty and security along with exceptional durability on 4 finish options. The Olympus hardware looks great on 8' tall doors because of the locks proportions. There is an exterior keyed lock option available in all 4 finishes.

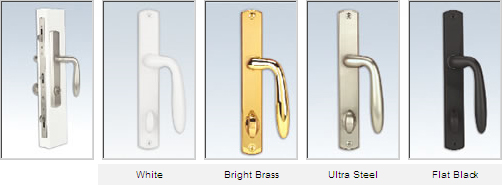

Winkhaus Multi Point



Fontana

Botticelli

The Patio Door Sliding Collection is available with a stainless steel multi-point locking system and offers 4 high quality finishes that will stand the test of time.

The hook latches are individually spring loaded, designed to automatically latch behind the strike plate when the door is closed. This feature insures engagement every time you close the door, yet you can still activate the door from the outside.

When the thumb latch is engaged the door is locked. Both stainless steel hook latches engage in opposite directions to provide superior tamper-proof, lift-out security protection.

The hook latches can be individually adjusted horizontally with a simple Allen wrench. In addition, a fail-safe device prevents unintentional locking and damage during operation.

The locking system is available with an optional outside keyed lock feature.



Special Considerations For Patio Doors

Tempered glass and double laminated (custom sizes) are standard on the Patio Door Sliding Collection from Bella Vista . Safety, building code compliance, lead times and overall performance are our main concerns and our commitment to homeowners investing in Bella Vista patio doors. All Patio doors come standard with tempered glass in both the double and triple glazed units. When a custom sized door is ordered we go the extra mile providing a double laminated unit for the ultimate safety and insuring that lead times are not extended.

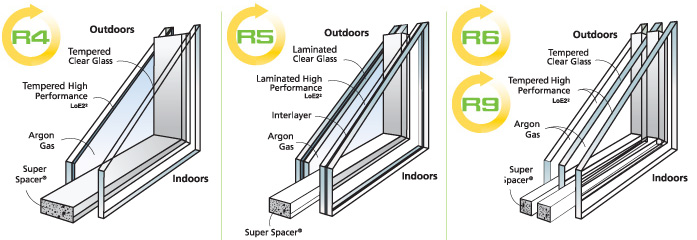

R4
Tempered LoE2 2, Argon with Super Spacer

R5 (Custom Patio Door)
Laminated, LoE2 2, Argon with Super Spacer
R6
Tempered Triple Pane, LoE2 2, Argon with Super Spacer
R9
Tempered Triple Pane, LoE2 2, Krypton with Super Spacer

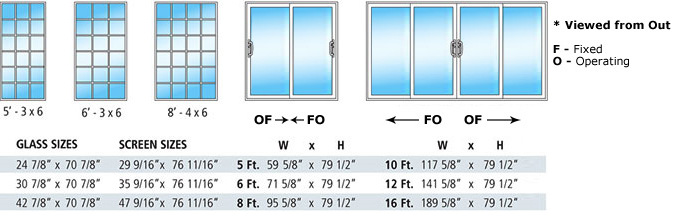

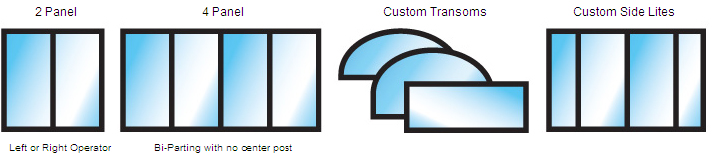

Standard & Custom Configurations and Sizing

The Bella Vista Patio Door Sliding Collection is available in standard 5', 6' and 8' two panel models as well as 10', 12' and 16' four panel units. Custom sizes are no problem through our automated manufacturing facility. Bella Vista also offers custom transoms and additional side-lite units to satisfy any design requirement. Our high quality all uPVC doors are designed to expand your entry options and allow you to invite the outdoors into your home.


Bella Vista Patio Doors are available in a myriad of Styles, Colors,Grille Options and Handle configurations for more information  call us at 416-234-9494
